| DATASHEET | cooler than smart! | ||||||||||||
| LFM1460: SmartCooler© industrial fan 60x60x20mm | |||||||||||||

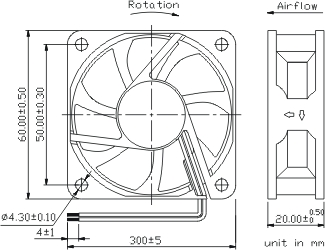

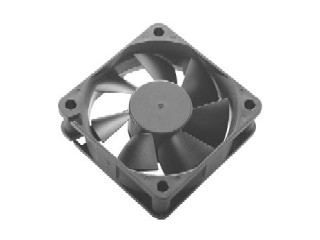

| Picture similar to product: | Drawing similar to product: | Create PDF | |||||||||||
|
|
|
||||||||||||
| Description: | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60x20mm SmartCooler© industrial high end fan made of PBT + 15-30% GF UL94V-0 with very low noise features, minimum vibration and minimum pulsing noise. Rotation from 2.000 up to 6.000 R.P.M.. Airflow from 18.0 - 55.0m³/h. Noise from 12-38dBA. | |||||||||||||
| Product Data: | |||||||||||||
| Size: | 60x60x20mm | Bearing: | 2 ball high tech nano bearing | ||||||||||
| Hole distance: | 50.0mm | Weight: | 50 gramm | ||||||||||
| Hole diameter: | 4.30mm | Frame: | 8-Hole, 4-Hole Frame | ||||||||||
| Cable: | 500mm, UL 1007 AWG 26 | Connector: | 3-Pin, 4-Pin connector 2.54mm | ||||||||||
| Optional features: | Speed signal | Autorestart | PWM-Signal | ||||||||||
| Function data: | (V)=4-Hole, (P)=PWM | ||||||||||||
| Version: | L(V) | E(V) | M(V) | S(V) | H(P)(V) | U(P)(V) | X(P)(V) | ||||||
| Rotation - R.P.M. +/- 10%: | 2.000 | 2.500 | 3.000 | 3.500 | 4.000 | 5.000 | 6.000 | ||||||
| Air flow m3/h: | 18.00 | 23.00 | 27.00 | 32.00 | 37.00 | 46.00 | 55.00 | ||||||
| Air flow cfm: | 10.59 | 13.53 | 15.88 | 18.82 | 21.76 | 27.05 | 32.35 | ||||||
| Aqmm: | 1.037 | 1.815 | 2.590 | 3.370 | 4.150 | 7.255 | 10.36 | ||||||
| Noise dbA: | 12.00 | 15.00 | 19.00 | 22.00 | 25.00 | 32.00 | 38.00 | ||||||
| Electrical Data: | |||||||||||||
| Rated current Amp: | 0.06A | 0.08A | 0.10A | 0.14A | 0.17A | 0.23A | 0.30A | ||||||
| Rated Power: | 0.72W | 0.96W | 1.20W | 1.68W | 2.04W | 2.76W | 3.60W | ||||||
| Starting Voltage: | 5.00V | 5.00V | 5.00V | 5.00V | 5.00V | 5.00V | 5.00V | ||||||
| Operation Voltage: | 12.00V | 12.00V | 12.00V | 12.00V | 12.00V | 12.00V | 12.00V | ||||||
| Physical boundaries: | |||||||||||||
| MTBF time about: | <= H = 300K/h, > H = 250K/h | Drop test: | Withstands free body drop of 30cm on a 1m² wooden table with a thickness of 10mm | ||||||||||
| Max. env. °C: | 70°C | Vibration test: | 1.000 R.P.M. at 2mm amplitute for 30min. | ||||||||||
| Item: | Safety standards: | ||||||||||||
| produced after following standards: | CE, TüV, UL, UR | ||||||||||||
| Item: | Packing: | ||||||||||||
| Size retail box: | 170x120x20mm | ||||||||||||
| Shipping qty. each carton: | 100 pcs. | ||||||||||||
| Note: | |||||||||||||
| Cable length 4-Hole Type: | 200 mm | ||||||||||||
| Revision: | |||||||||||||
| Revision: 3.3 | Last change: 2008-09-01 | ||||||||||||
|
