| DATASHEET | cooler than smart! | ||||||||||||
| LFM1514: SmartCooler© industrial fan 140x140x25mm | |||||||||||||

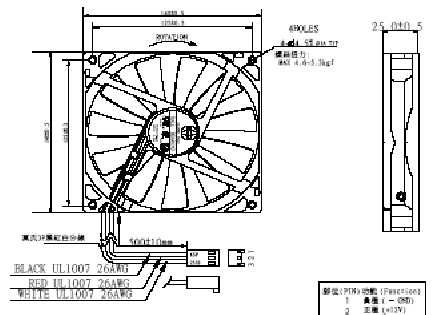

| Picture similar to product: | Drawing similar to product: | Create PDF | |||||||||||
|
|
|
||||||||||||
| Description: | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 140x25mm SmartCooler© industrial high end fan made of PBT + 15-30% GF UL94V-0 with very low noise features, minimum vibration and minimum pulsing noise. Rotation from 900 up to 1.800 R.P.M.. Airflow from 85.0 - 175.0m³/h. Noise from 15-38dBA. | |||||||||||||
| Product Data: | |||||||||||||
| Size: | 140x140x25mm | Bearing: | 2 ball high tech nano bearing | ||||||||||
| Hole distance: | 125.0mm | Weight: | 180 gramm | ||||||||||
| Hole diameter: | 4.30mm | Frame: | 4-Hole Frame | ||||||||||
| Cable: | 500mm, UL 1007 AWG 26 | Connector: | 3-Pin, 4-Pin connector 2.54mm | ||||||||||
| Optional features: | Speed signal | Autorestart | PWM-Signal | ||||||||||
| Function data: | (V)=4-Hole, (P)=PWM | ||||||||||||
| Version: | L(V) | E(V) | M(P)(V) | S(P)(V) | H(P)(V) | U(P)(V) | X(P)(V) | ||||||
| Rotation - R.P.M. +/- 10%: | 900 | 1.200 | 1.500 | 1.800 | |||||||||
| Air flow m3/h: | 85.00 | 115.0 | 140.0 | 175.0 | |||||||||
| Air flow cfm: | 50.00 | 67.65 | 82.35 | 102.94 | |||||||||
| Aqmm: | 0.831 | 1.187 | 1.906 | 3.325 | |||||||||
| Noise dbA: | 15.00 | 25.00 | 32.00 | 38.00 | |||||||||
| Electrical Data: | |||||||||||||
| Rated current Amp: | 0.07A | 0.12A | 0.25A | 0.40A | |||||||||
| Rated Power: | 0.84W | 1.44W | 3.00W | 4.80W | |||||||||
| Starting Voltage: | 5.00V | 5.00V | 5.00V | 5.00V | |||||||||
| Operation Voltage: | 12.00V | 12.00V | 12.00V | 12.00V | |||||||||
| Physical boundaries: | |||||||||||||
| MTBF time about: | <= H = 300K/h, > H = 250K/h | Drop test: | Withstands free body drop of 30cm on a 1m² wooden table with a thickness of 10mm | ||||||||||
| Max. env. °C: | 70°C | Vibration test: | 1.000 R.P.M. at 2mm amplitute for 30min. | ||||||||||
| Item: | Safety standards: | ||||||||||||
| produced after following standards: | CE, TüV, UL, UR | ||||||||||||
| Item: | Packing: | ||||||||||||
| Size retail box: | 225x180x25mm | ||||||||||||
| Shipping qty. each carton: | 100 pcs. | ||||||||||||
| Revision: | |||||||||||||
| Revision: 3.3 | Last change: 2008-09-01 | ||||||||||||
|
