| DATASHEET | cooler than smart! | ||||||||||||
| LFN1340: SmartCooler© industrial fan 40x40x15mm | |||||||||||||

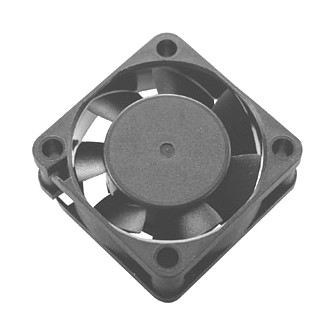

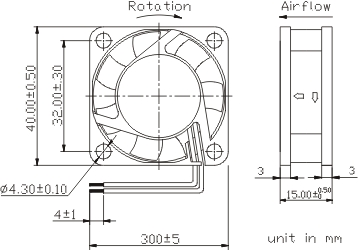

| Picture similar to product: | Drawing similar to product: | Create PDF | |||||||||||
|
|
|
||||||||||||
| Description: | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40x15mm SmartCooler© industrial high end fan made of PBT + 15-30% GF UL94V-0 with very low noise features, minimum vibration and minimum pulsing noise. Rotation from 3.000 up to 9.000 R.P.M.. Airflow 5.5 - 16.5m³/h. Noise from 12-32dBA. | |||||||||||||
| Product Data: | |||||||||||||
| Size: | 40x40x15mm | Bearing: | 2 ball high tech nano bearing | ||||||||||
| Hole distance: | 32.0mm | Weight: | 22 gramm | ||||||||||
| Hole diameter: | 4.30mm | Frame: | 4-Hole Frame | ||||||||||
| Cable: | 200mm, UL 1007 AWG 28 | Connector: | 3-Pin connector 2.54mm | ||||||||||
| Optional features: | Speed signal | Autorestart | PWM-Signal | ||||||||||
| Function data: | (P)=PWM | ||||||||||||
| Version: | L | E | M | S | H | U | X | ||||||
| Rotation - R.P.M. +/- 10%: | 3.000 | 4.000 | 5.000 | 6.000 | 7.000 | 8.000 | 9.000 | ||||||
| Air flow m3/h: | 5.500 | 7.300 | 9.200 | 11.00 | 12.80 | 14.60 | 16.50 | ||||||
| Air flow cfm: | 3.235 | 4.294 | 5.412 | 6.471 | 7.529 | 8.588 | 9.706 | ||||||
| Aqmm: | 1.035 | 1.892 | 2.750 | 4.105 | 5.131 | 6.670 | 8.210 | ||||||
| Noise dbA: | 12.00 | 15.00 | 19.00 | 22.00 | 25.00 | 28.00 | 32.00 | ||||||
| Electrical Data: | |||||||||||||
| Rated current Amp: | 0.12A | 0.14A | 0.16A | 0.20A | 0.24A | 0.30A | 0.40A | ||||||
| Rated Power: | 0.60W | 0.70W | 0.80W | 1.00W | 1.20W | 1.50W | 2.00W | ||||||
| Starting Voltage: | 3.00V | 3.00V | 3.00V | 3.00V | 3.00V | 3.00V | 3.00V | ||||||
| Operation Voltage: | 5.00V | 5.00V | 5.00V | 5.00V | 5.00V | 5.00V | 5.00V | ||||||
| Physical boundaries: | |||||||||||||
| MTBF time about: | <= H = 300K/h, > H = 250K/h | Drop test: | Withstands free body drop of 30cm on a 1m² wooden table with a thickness of 10mm | ||||||||||
| Max. env. °C: | 70°C | Vibration test: | 1.000 R.P.M. at 2mm amplitute for 30min. | ||||||||||
| Item: | Safety standards: | ||||||||||||
| produced after following standards: | CE, TüV, UL, UR | ||||||||||||
| Item: | Packing: | ||||||||||||
| Size retail box: | 150x100x15mm | ||||||||||||
| Shipping qty. each carton: | 200 pcs. | ||||||||||||
| Revision: | |||||||||||||
| Revision: 3.3 | Last change: 2008-08-29 | ||||||||||||
|
